Deck Plan Contents

This description applies to the downloadable deck plans, not custom plans. For information on custom plans, please see the custom deck plans page.

All downloadable pre-engineered deck plans include:

  • At least one photo or 3D drawing (.jpg)
  • Set of plans (.pdf)
    • Deck layout
    • Front view
    • Left and right side views (some plans)
    • Sub-structure
    • Foundation
  • Material list categorized by deck section
  • Overall material list summary

Here's what's contained in a typical DIY Deck Plan:

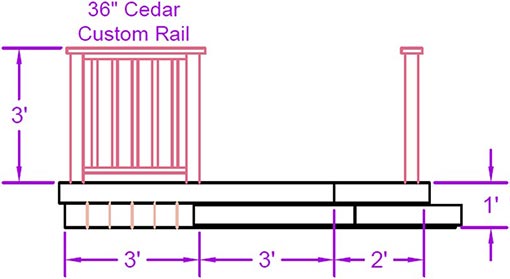

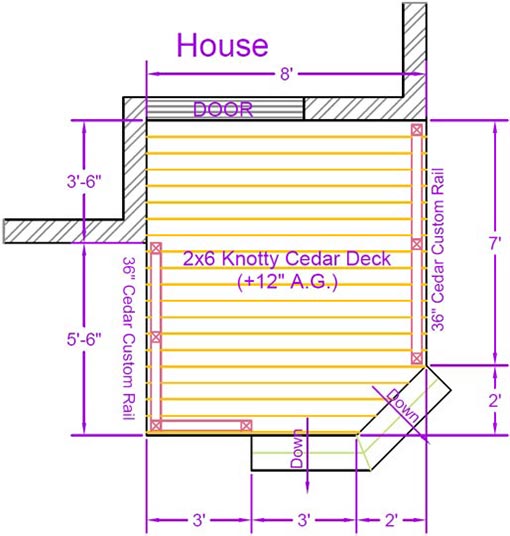

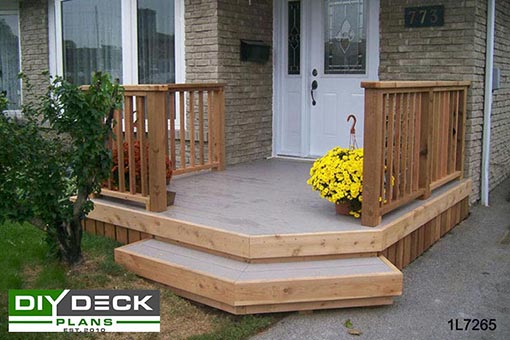

Small, single level deck. Overhead deck plan details of small, single level deck. Front deck plan details of small, single level deck.

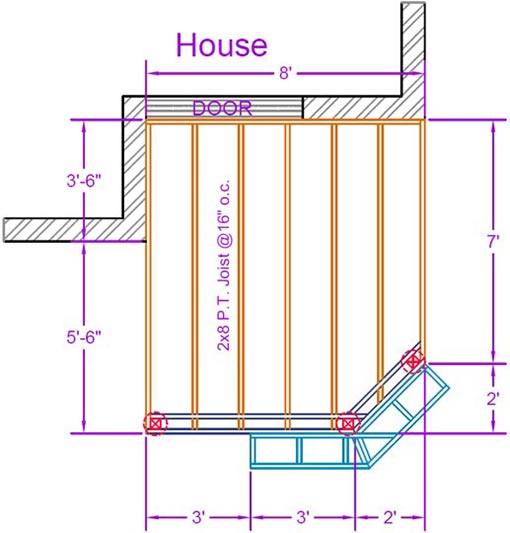

Deck substructure details of small, single level deck.

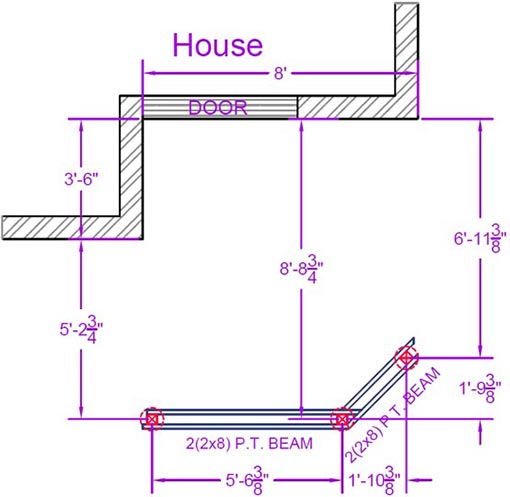

Deck foundation details of small, single level deck.

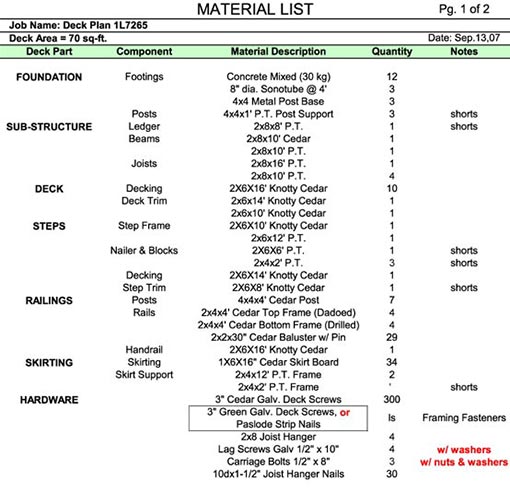

Detailed deck material list for small, single level deck.

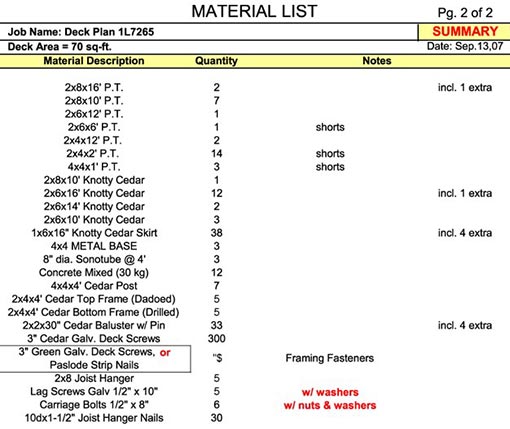

Deck material list summary for small, single level deck.


Note: This is a sample only. The individual drawings included in each set of plans may vary.

For more information about our deck plans got to Deck Plan Details.
